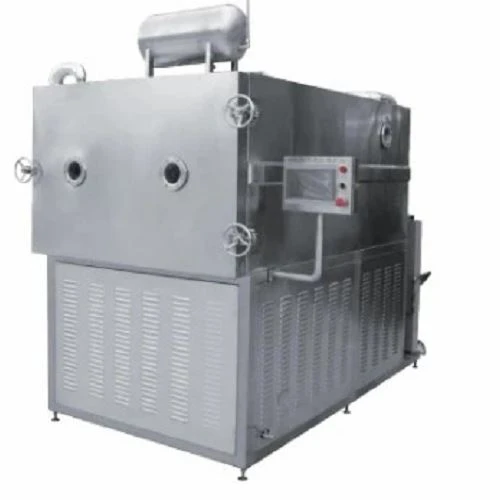

Pilot-Scale Freeze Dryer

The pilot-scale freeze dryer bridges laboratory-scale R&D and full-scale industrial manufacturing. Engineered for process optimization, formulation development, and small-batch clinical production, this equipment provides precise thermodynamic control to establish scalable freeze-drying cycles. Designed in compliance with cGMP and GAMP5 guidelines, the unit ensures verifiable heat and mass transfer data, minimizing scale-up risks for pharmaceutical, biotechnology, and advanced food processing applications.

Pharmaceutical Formulations: Lyophilization cycle development for therapeutic proteins, monoclonal antibodies (mAbs), vaccines, and small-molecule injectables.

Clinical Trial Supply: Production of phase I and phase II clinical trial batches under validated sterile conditions.

Biotechnology: Preservation of live attenuated viruses, enzymes, diagnostics reagents, and bacterial cultures.

Advanced Materials: Processing of nano-powders, aerogels, and high-purity chemical intermediates requiring structural integrity preservation.

To select the correct pilot freeze dryer configuration, evaluate the following parameters against your process requirements:

Batch Mass & Sublimation Rate: Calculate total water load per batch. Ensure the condenser capacity exceeds the peak sublimation rate by at least 20% to prevent chamber pressure spikes.

Product Eutectic / Collapse Temperature: Verify that the refrigeration system can achieve shelf and condenser temperatures at least 10°C below the product's critical collapse temperature (Tc).

Stoppering Mechanism: Specify hydraulic or pneumatic stoppering if processing vials under vacuum or inert gas backfilling (nitrogen overlay) is required.

Cleaning and Sterilization: Determine whether Clean-In-Place (CIP) and Sterilize-In-Place (SIP) systems are mandatory based on compound potency and containment requirements.

Containment Integration: Integration with RABS (Restricted Access Barrier Systems) or isolators for toxic or highly potent active pharmaceutical ingredients (HPAPIs).

Vacuum Control: Automated proportional valve for precise chamber pressure regulation via inert gas injection (Millitorr control).

Analytical Probes: Integration of Pirani and capacitance manometers for comparative pressure measurement, plus thermocouple probes for direct product temperature tracking.

Data Acquisition: Customized SCADA software connectivity matching site-wide building management systems (BMS).

Material Traceability: Mill test certificates (MTCs) provided for all product-contact 316L stainless steel components.

Welding Inspection: 100% orbital welding on sanitary piping, verified via borescope inspection and dye penetrant testing (PT).

Pressure Vessel Compliance: Chambers designed and tested according to ASME Sec. VIII Div. 1 or PED 2014/68/EU standards.

Factory Acceptance Testing (FAT): Comprehensive pre-shipment testing including helium leak detection, vacuum hold tests, and thermal mapping of shelves.

Export Packaging: Vacuum-sealed in heavy-duty moisture-barrier foil with desiccant packs, secured inside fumigated ISPM 15-compliant wooden crates.

Shock & Tilt Monitoring: Equipped with impact-recording and tilt-indicator tags to track transit handling integrity.

Logistics Coordination: Shipped with complete customs documentation, including Certificate of Origin, Bill of Lading, and pressure vessel compliance dossiers.

Documentation Package: Comprehensive IQ/OQ validation protocols, electrical schematics, P&ID diagrams, and component maintenance manuals delivered upon dispatch.

Remote Diagnostics: Secure Ethernet port for remote PLC troubleshooting, firmware updates, and cycle parameter optimization by application engineers.

Spare Parts Availability: Critical wear items (pump oil filters, door gaskets, solenoid valves) stocked in regional hubs for rapid dispatch.
