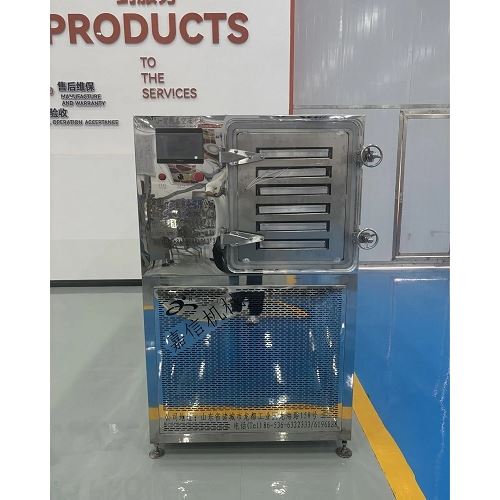

Pilot Freeze-Drying Equipment

Pilot freeze-drying equipment bridges laboratory research and full-scale industrial production. Designed for process development, clinical trial batch manufacturing, and formulation optimization, these systems replicate the thermal dynamics and vacuum profiles of production-scale lyophilizers.

Operating at shelf temperatures down to -55°C (or -70°C for low-eutectic formulations) and achieving an ultimate vacuum below 1 Pa, our pilot units ensure consistent crystal growth, primary drying, and secondary drying phases. Systems comply with cGMP guidelines, featuring sanitary 316L stainless steel product contact surfaces, clean-in-place (CIP) capability, and PLC-based SCADA control for electronic batch record (EBR) integrity.

Shelf Construction: 316L stainless steel internal plates, mechanically polished to Ra <= 0.4 um, internal fluid channel design ensuring thermal uniformity of ± 1.0°C across all shelves.

Condenser Chamber: Independent cylindrical ice condenser positioned behind or below the product chamber; 316L material construction equipped with a pneumatic isolation valve.

Refrigeration System: Semi-hermetic dual-stage compressors utilizing environmental-compliant refrigerants; electronic expansion valve (EEV) control for precise thermal regulation.

Vacuum System: Two-stage rotary vane vacuum pumps coupled with Roots blowers; monitored via Pirani and Capacitance manometers (Baratron) for reliable chamber pressure control.

Control & Data Architecture: Siemens S7-1200/1500 PLC paired with an industrial touch panel; 21 CFR Part 11 compliant audit trail, automated recipe management, and sublimation end-point detection via pressure ratio analysis.

Utility Interfaces: Clean steam port for sterilization (SIP), purified water (WFI) loop interface for cleaning, chilled water or glycol supply for heat rejection, and instrument air (>= 0.6 MPa).

Biopharmaceuticals: Lyophilization of monoclonal antibodies (mAbs), vaccines, live viruses, recombinant proteins, and peptide-based therapeutics in vials or ampoules.

Diagnostics & Reagents: Preservation of PCR master mixes, in-vitro diagnostic (IVD) enzymes, and microfluidic testing kits requiring extended stability without cold-chain storage.

Active Pharmaceutical Ingredients (APIs): Isolation of thermolabile pharmaceutical compounds, antibiotics, and hormone derivatives.

Advanced Materials: Nano-powders, polymer suspensions, and high-purity chemical catalysts requiring uniform porosity and structural stability post-drying.

Selecting a pilot freeze-dryer requires matching thermodynamic capacity with formulation physics and regulatory demands:

Calculate Shelf Area & Vial Footprint: Determine total batch size and vial dimensions. Factor in a 10% safety margin for edge heat transfer effects and calibration sensors.

Define Thermal Profiles: Match the eutectic point (Te) or collapse temperature (Tc) of your formulation. Formulations with Tc below -45°C require cascade refrigeration systems with -70°C shelf capability.

Vapor Mass Flow Rate: Estimate total water content per batch divided by the target primary drying window (typically 24 to 48 hours) to properly size ice condenser capacity and vacuum pump displacement.

Containment & Safety Level: For potent compounds or hazardous APIs (HPAPI), specify barrier protection, isolator integration, or automated hydraulic stoppering under sterile conditions.

Stoppering Mechanism: Bottom-hydraulic or pneumatic vial stoppering systems enabling vacuum-sealing of vials inside the chamber prior to release.

Clean-In-Place (CIP) & Sterilize-In-Place (SIP): Integrated spray ball matrix, pure steam distribution piping, and validation test ports.

Containment Integration: Restricted Access Barrier Systems (RABS) or isolator compatibility for aseptic processing lines.

Chamber Configuration: Rectangular vs. cylindrical chambers configured for cleanroom wall integration (pass-through pass-box design).

Material Traceability: Mill test certificates (MTC) provided for all 316L stainless steel product contact components complying with EN 10204 3.1.

Non-Destructive Testing (NDT): 100% radiographic (RT) or dye penetrant (PT) inspection on critical vacuum chamber welds and pressure-bearing components.

Pressure Vessel Standards: Pressure vessels designed, manufactured, and stamped in accordance with ASME Section VIII Div. 1 or PED 2014/68/EU standards.

Factory Acceptance Testing (FAT): Comprehensive factory testing covering electrical safety, helium mass spectrometer leak testing (<= 1 x 10^-6 Pa*m^3/s), thermal mapping, and automated PLC recipe execution.

Export Barrier Protection: Vacuum-sealed in heavy-duty multi-layer anti-corrosion barrier foil, packaged inside fumigated, ISPM 15 compliant export wooden crates with shock-impact indicators.

Component Securing: Refrigeration condensing units, vacuum pumps, and electrical cabinets rigidly mounted to prevent transit vibration damage; fragile glass sensors and instrumentation packed separately.

Documentation Package: Comprehensive English documentation supplied, including Operation & Maintenance Manuals, Electrical Schematics, P&ID diagrams, Material Certificates, and IQ/OQ protocol templates.

Installation & Commissioning: On-site engineering deployment for mechanical positioning, utility hook-up supervision, and Site Acceptance Testing (SAT) support.

Validation Assistance: Documentation and protocol execution support for Installation Qualification (IQ) and Operational Qualification (OQ).

Remote Diagnostic Gateway: Secure VPN module integration enabling remote PLC troubleshooting, data log retrieval, and firmware diagnostics by factory engineers.

Spare Parts Logistics: Critical wear parts (pump maintenance kits, sanitary gaskets, valves, and heating elements) stocked for rapid international dispatch.
